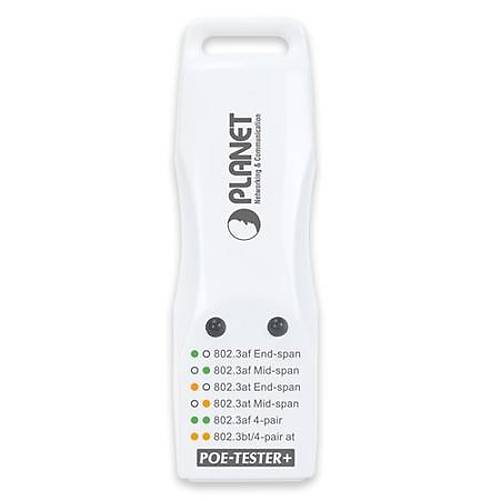

Planet PL-POE-TESTER+ IEEE 802.3af at bt Power over Ethernet Test Cihazı
ParaPuan : 319.000
Planet PL-POE-TESTER+ IEEE 802.3af at bt Power over Ethernet Test Cihazı
| Interface | 1 x RJ45 TP connector ? PoE Power Input (PD) |
| LED indicators | ? Left Amber - 802.3at PoE+ End-span / Pins 1, 2, 3 and 6 - The PoE standard is detected as 802.3at PoE+ and voltage is detected on pair 1,2,3,6 ? Left Green - 802.3af PoE End-span / Pins 1, 2, 3 and 6 - The PoE standard is detected as 802.3af PoE and voltage is detected on pair 1,2,3,6 ? Right Amber - 802.3at PoE+ Mid-span / Pins 4, 5, 7 and 8 - The PoE standard is detected as 802.3at PoE+ and voltage is detected on pair 4,5,7,8 ? Right Green - 802.3af PoE Mid-span / Pins 4, 5, 7 and 8 - The PoE standard is detected as 802.3af PoE and voltage is detected on pair 4,5,7,8 ? Both Amber - 4-pair 802.3bt PoE++ or 4-pair 802.3at PoE+ - The PoE standard is detected as IEEE 802.3bt PoE++ or PoH and voltage is detected on all pairs ? Both Green - 4-pair 802.3af PoE or non-standard force mode PoE - The PoE standard is detected as IEEE 802.3af PoE or non-standard PoE and voltage is detected on all pairs |
| Power Input | IEEE 802.3af PoE compliant with DC voltage within 37~57V IEEE 802.3at PoE+ and IEEE 802.3bt PoE++ compliant with DC voltage within 42~57V |
| Dimensions | 23 x 70.1 x 22 mm (W x D x H) |
| Weight | 24g |
| Environments | |
|---|---|
| Operating | Temperature: 0~50 degrees C Relative Humidity: 5~95% (non-condensing) |
| Storage | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
| Emission | CE Compliance |
| Ordering Information | |
|---|---|
POE-TESTER+ |
IEEE 802.3af/at/bt Power over Ethernet Tester |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-POE-TESTER+ |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
