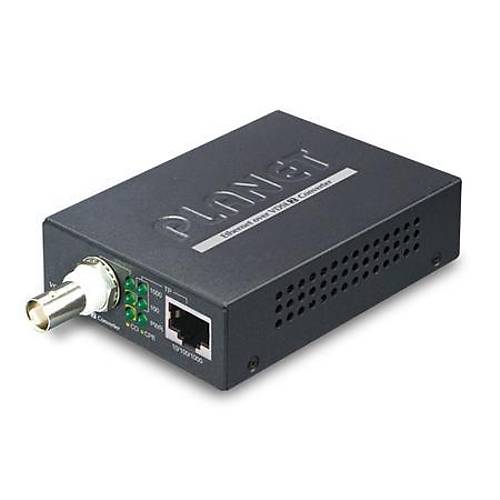

Planet PL-VC-232G 1 Port Gigabit RJ45 toCoaxial Sinyal Çevirici

Görsel 1
Görsel 2
ParaPuan : 1.964.025
Fiyat:
4.713,66 TL
Havale / EFT:
4.642,96 TL
895,60 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo Kargo Bedava

Planet PL-VC-232G 1 Port Gigabit RJ45 toCoaxial Sinyal Çevirici


Hardware Specifications
TP interface1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
VDSL Interface1 BNC female Ethernet over Coaxial

Cabling
Coaxial cable: 75 ohm
RG-6/U cable, less than12Ω/1000 ft
RG-59/U cable, less than 30Ω/1000 ft.

Maximum Distance
Max. 1400m with data transmission (4,593ft.)
FunctionalityDIP-1: Select CO or CPE mode
DIP-2: Select G.INP or Interleaved mode
DIP-3: Select Band Profile (Asymmetric or Symmetric)
DIP-4: Select SNR of 12dB or 8dB
Dimensions (W x D x H)70 x 97 x 26 mm
Weight185g
Power RequirementDC 5V, 2A external power
LED IndicatorsPower: Green
1000BASE-T LNK/ACT: Green
VDSL: Green
CO: Green
CPE: Green
HousingMetal
Switch Specifications
Switch Processing SchemeStore-and-Forward
Address Table2K entries
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
System Specifications
VDSL Compliance
  • VDSL-DMT
  • ?ITU-T G.993.1 VDSL
    ?ITU-T G.993.1 VDSL
    ?ITU-T G.997.1
    ?ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
    ?ITU-T G.993.5 G. Vectoring
    ?ITU-T G.998
    ?G.INP
Standards Conformance
Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-duplex flow control
IEEE 802.1p Class of Service
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
ITU-T G.993.5 G.Vectoring and G.INP
ITU-T G.998
Regulatory ComplianceFCC Part 15 Class A, CE
Environment
TemperatureOperating: 0~50 degrees C
Storage: -10~70 degrees C
HumidityOperating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
Performance
Coaxial PerformanceInterleave(Upstream/Downstream: Mbps)
?Asymmetric (8dB):
?200m ->88Mbps/168Mbps
?400m ->75Mbps/160Mbps
?600m ->59Mbps/129Mbps
?800m ->32Mbps/110Mbps

?Asymmetric (12dB):
?200m ->78Mbps/145Mbps
?400m ->69Mbps/137Mbps
?600m ->48Mbps/118Mbps
?800m ->26Mbps/94Mbps

?Symmetric (8dB):
?200m ->129Mbps/131Mbps
?400m ->117Mbps/122Mbps
?600m ->101Mbps/92Mbps
?800m ->62Mbps/73Mbps

?Symmetric (12dB):
?200m ->117Mbps/123Mbps
?400m ->102Mbps/102Mbps
?600m ->88Mbps/82Mbps
?800m ->47Mbps/56Mbps


G.INP(Upstream/Downstream: Mbps)
?Asymmetric (8dB):
?200m ->95Mbps/200Mbps
?400m ->82Mbps/175Mbps
?600m ->59Mbps/151Mbps
?800m ->37Mbps/122Mbps

?Asymmetric (12dB):
?200m ->89Mbps/181Mbps
?400m ->71Mbps/156Mbps
?600m ->46Mbps/136Mbps
?800m ->30Mbps/102Mbps

?Symmetric (8dB):
?200m ->147Mbps/147Mbps
?400m ->132Mbps/135Mbps
?600m ->108Mbps/104Mbps
?800m ->76Mbps/78Mbps

?Symmetric (12dB):
?200m ->138Mbps/143Mbps
?400m ->116Mbps/120Mbps
?600m ->91Mbps/89Mbps
?800m ->58Mbps/60Mbps


Note: As there are various resistance values in the category of RG-59/U or RG-6/U cable, the actual data rate will vary on the quality of the copper wire and environmental factors.

Diğer Özellikler
Stok KoduPL-VC-232G
MarkaPLANET
Stok DurumuVar
Garanti (Yıl)2
4711605283182
