Tp-Link TL-SF1009P 9 Port 10/100Mbps 8 Port PoE 65W PoE Masaüstü PoE Switch

Görsel 1
Görsel 2
Görsel 3
ParaPuan : 716.185
Fiyat:
1.718,84 TL
Havale / EFT:
1.693,06 TL
326,58 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo Kargo Bedava

TL-SF1009P

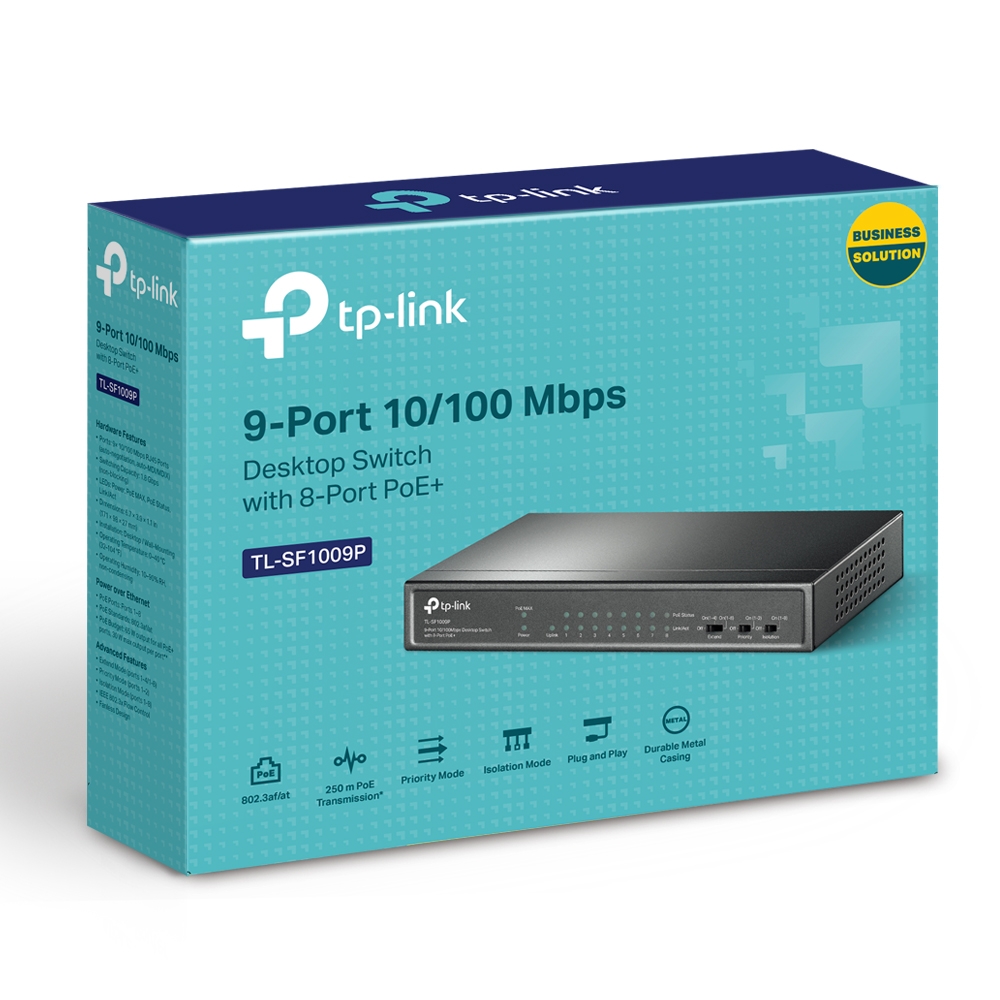

9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

  • 9× 10/100 Mbps RJ45 ports
  • 8× PoE+ ports transfer data and power on individual cables
  • Works with IEEE 802.3af/at compliant PDs
  • Supports PoE Power up to 30 W for each PoE port

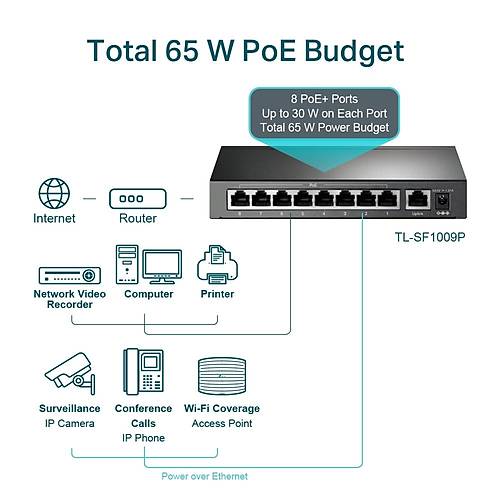

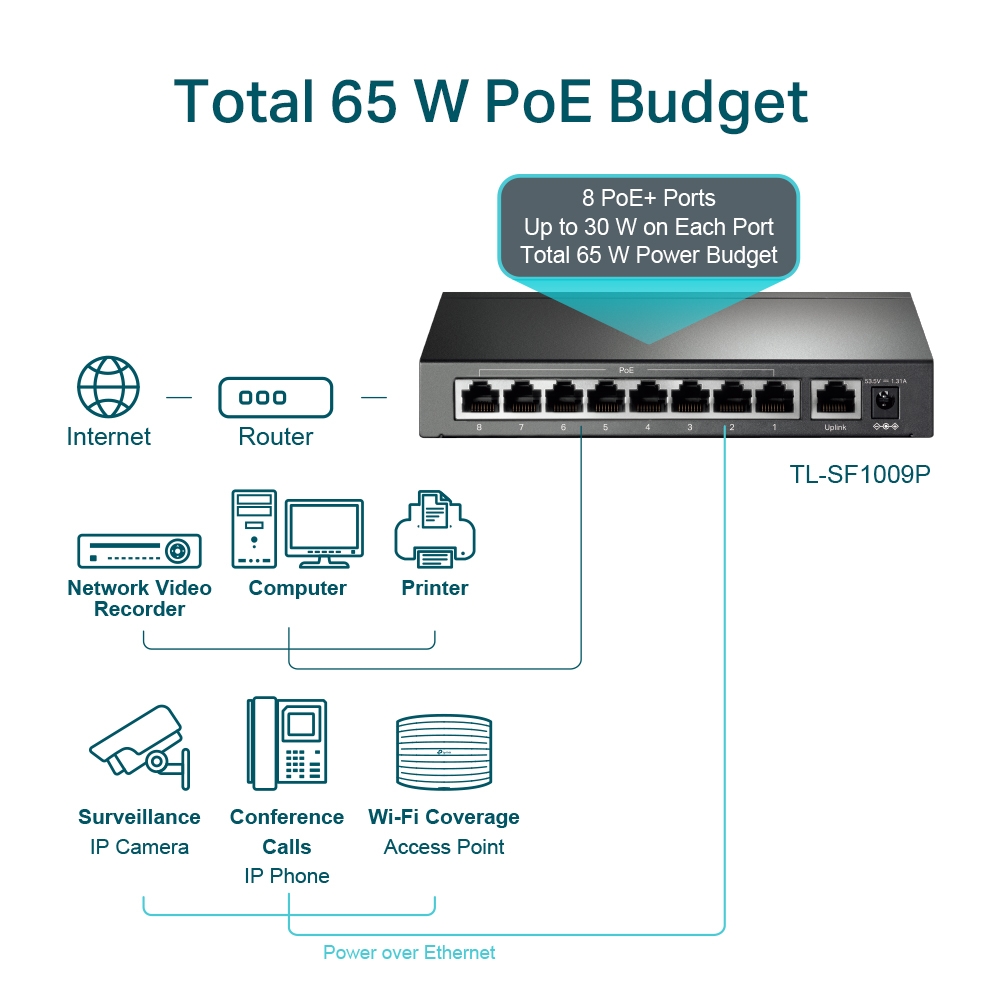

  • Supports PoE Power up to 65 W for 8 PoE ports*
  • Up to 250 m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Isolation Mode allows one-click client traffic separation for higher security and performance

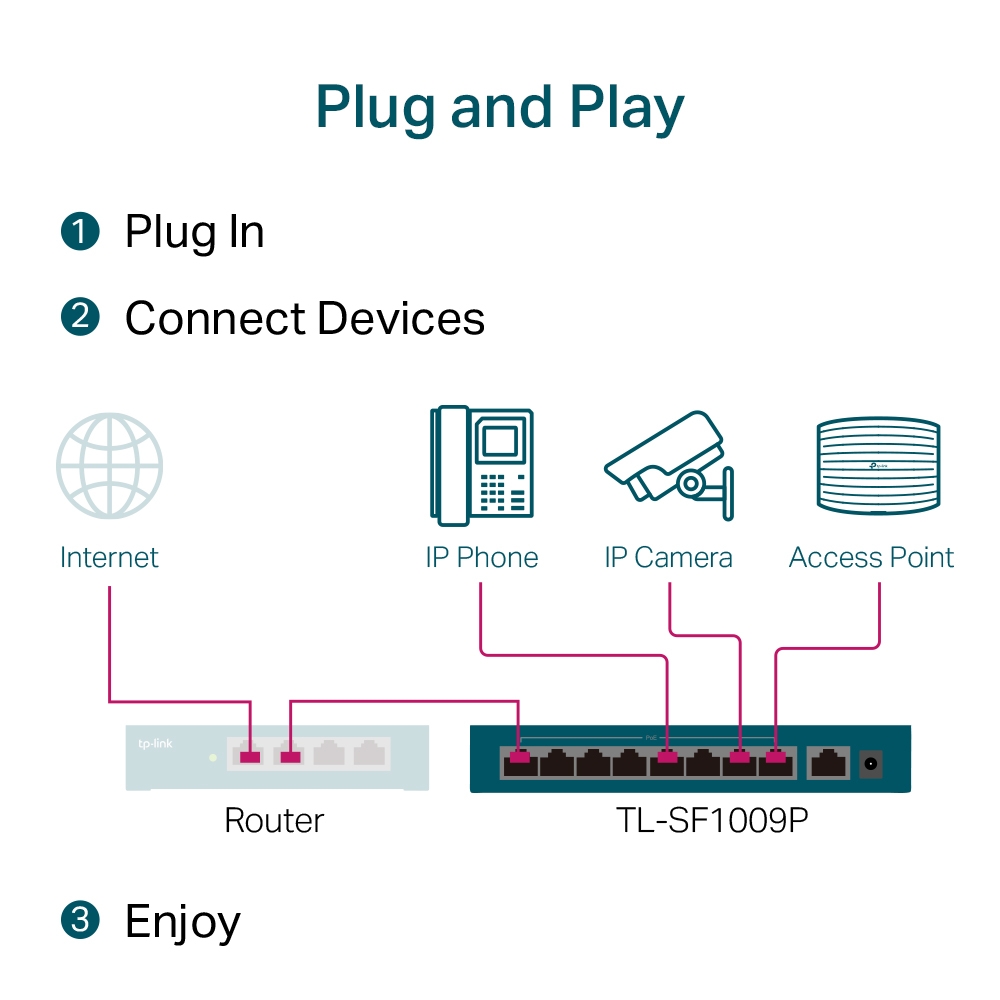

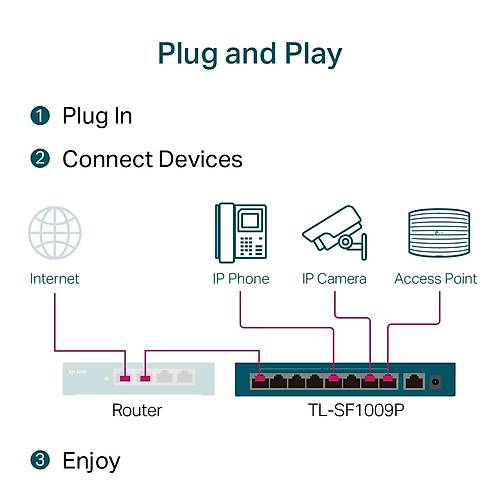

  • Plug and play with no configuration required

DONANIM ÖZELLİKLERİ
Arabirim • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
• AUTO Negotiation
• AUTO MDI/MDIX
Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Sayısı Fanless
Fiziksel Güvenlik Kilidi Yes
Harici Güç Kaynağı External Power Adapter (Output: 53.5VDC / 1.31A)
Paket Yönlendirme Hızı 1.3392 Mpps
PoE Portları (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 65 W
MAC Adres Tablosu 2K
Jumbo Frame 2 KB
Switching Kapasitesi 1.8 Gbps
Boyutlar ( W X D X H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Maks. Güç Tüketimi • 3.6 (220/50 Hz. no PD connected)
• 77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation • 12.28 BTU/h (no PD connected)
• 262.84 BTU/h (with 65 W PD connected)
YAZILIM ÖZELLİKLERİ
İletim Metodu Store-And-Forward
Gelişmiş Fonksiyonlar • Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
DİĞERLERİ
Sertifika FCC, CE, RoHS
Paket İçeriği • TL-SF1009P
• Power Adapter
• Installation Guide
Ortam • Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Teknik Özellikler
Kullanım TipiPoE Switch
Port Sayısı9 Port
Veri Transferi10/100 Mbps
YönetimYok
Ethernet Port1 Port
SFP Port1 Port
PoE Port8 Port
Diğer Özellikler
Stok KoduTL-SF1009P
MarkaTP-LINK
Stok DurumuVar
Garanti (Yıl)2
6935364052966
