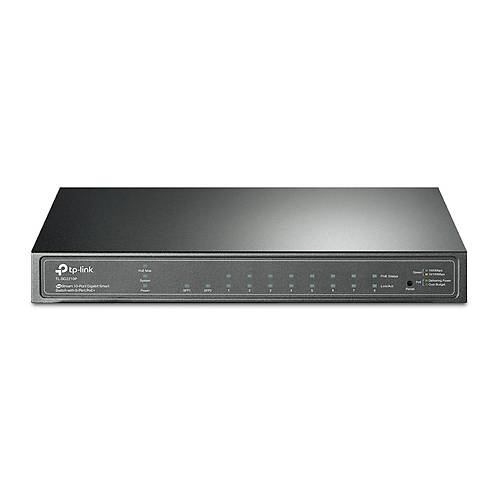

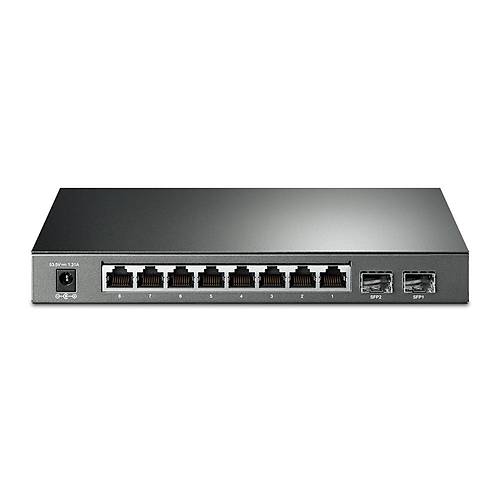

Tp-Link TL-SG2210P JetStream 8 Port Gigabit PoE+ 2 Port SFP 58W PoE Switch

Görsel 1
Görsel 2
ParaPuan : 2.176.090
Fiyat:
5.222,61 TL
Havale / EFT:
5.039,82 TL
Aynı Gün Kargo Kargo Bedava

TL-SG2210P

JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots

  • Features 8 PoE+ ports, with total PoE power budget of 58W* and useful PoE power management features
  • Gigabit Ethernet connections on all ports provide full speed of data transferring
  • Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
  •  L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
  • WEB/CLI managed modes, SNMP, RMON bring abundant management features
  •  Innovative energy-efficient technology saves up to 50% of power consumption
DONANIM ÖZELLİKLERİ
Standartlar ve Protokoller IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Arabirim 8 10/100/1000Mbps RJ45 Ports
2 1000Mbps SFP Slots
(Auto-Negotiation/Auto MDI/MDIX)
Ağ Medyası 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Fan Sayısı Fanless
Güç Kaynağı 100~240VAC, 50/60Hz
External Power Adapter(Output: 53.5VDC/1.31A)
Güç Tüketimi Maximum (PoE on): 75.3W (220V/50Hz)
Maximum (PoE off): 10.5W (220V/50Hz)
PoE Portları (RJ45) Standard: 802.3af/at compliant
PoE Ports: 8 Ports
Power Supply: 58W*
Boyutlar ( W X D X H ) 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)
PERFORMANS
Bandwidth/Backplane 20Gbps
Paket Yönlendirme Hızı 14.88Mpps
MAC Adres Tablosu 8k
Paket Buffer Belleği 512KB
Jumbo Frame 9216 Bytes
YAZILIM ÖZELLİKLERİ
Quality of Service Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
VLAN Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Erişim Kontrol Listesi L2?L4 package filtering based on source and destination
MAC address, IP address, TCP/UDP ports, 802.1p,
DSCP, protocol and VLAN ID
Time Range Based
Güvenlik SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown unicast Storm Control
802.1x and Radius Authentication?IP-Mac-Port-VID Binding?ARP Inspection?DHCP Snooping?DoS Defend
L2 Switching Özellikleri IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups,
containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
LLDP(LLDP-MED)
Yönetim Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
DİĞERLERİ
Sertifika CE, FCC, RoHS
Paket İçeriği TL-SG2210P
Power Adapter
Installation Guide
Resource CD
Rubber Feet
Sistem Gereksinimleri Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Ortam Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Teknik Özellikler
Kullanım TipiPoE Switch
Port Sayısı8 Port
Veri Transferi1 Gigabit
YönetimYok
Ethernet Port8 Port
SFP Port1 Port
PoE Port8 Port
Diğer Özellikler
Stok KoduTL-SG2210P
MarkaTP-LINK
Stok DurumuVar
Garanti (Yıl)2
6935364030698
