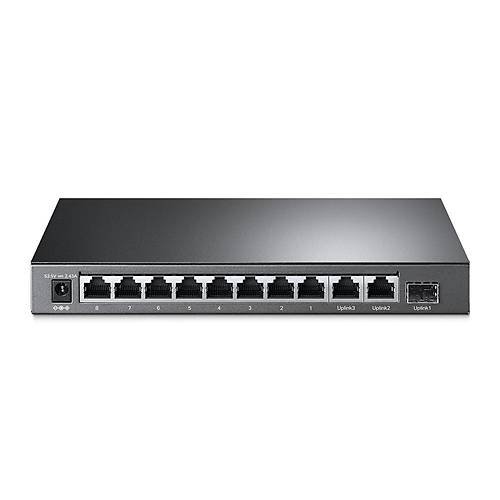

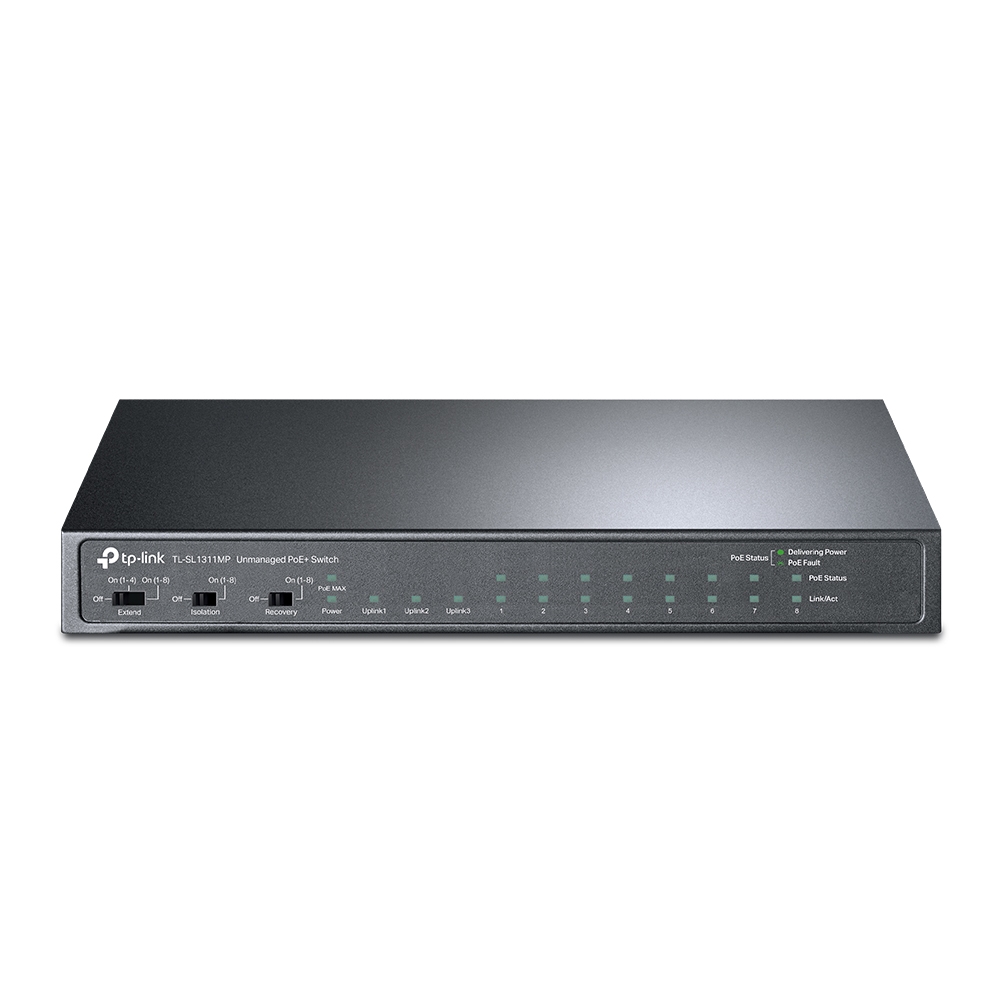

Tp-Link TL-SL1311MP 8 Port 10/100 2 Port Gigabit 1 Port SFP PoE Switch
ParaPuan : 1.796.850
Tp-Link TL-SL1311MP 8 Port 10/100 2 Port Gigabit 1 Port SFP PoE Switch
TL-SL1311MP
8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
- 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 124 W for 8 PoE ports*
- Up to 250 m data and power transmitting range under Extend Mode**
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required
| DONANIM ÖZELLİKLERİ | |
|---|---|
| Arabirim | • 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port • AUTO Negotiation • AUTO MDI/MDIX |
| Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Sayısı | Fanless |
| Fiziksel Güvenlik Kilidi | Yes |
| Harici Güç Kaynağı | External Power Adapter (Output: 53.5VDC / 2.43A) |
| Paket Yönlendirme Hızı | 5.6544 Mpps |
| PoE Portları (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 124 W |
| MAC Adres Tablosu | 2K |
| Jumbo Frame | 16 KB |
| Switching Kapasitesi | 7.6 Gbps |
| Boyutlar ( W X D X H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Maks. Güç Tüketimi | • 5.95 W (220/50 Hz. no PD connected) • 140.92 W (220/50 Hz. with 124 W PD connected) |
| Max Heat Dissipation | • 20.29 BTU/h (no PD connected) • 480.54 BTU/h (220/50 Hz. with 124 W PD connected) |
| YAZILIM ÖZELLİKLERİ | |
|---|---|
| İletim Metodu | Store-And-Forward |
| Gelişmiş Fonksiyonlar | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) • Isolation Mode Button (Ports 1–8) • PoE Auto Recovery Button (Ports 1–8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
| DİĞERLERİ | |
|---|---|
| Sertifika | FCC, CE, RoHS |
| Paket İçeriği | • TL-SL1311MP • Power Adapter • Installation Guide |
| Ortam | • Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
| Teknik Özellikler | |
|---|---|
| Kullanım Tipi | PoE Switch |
| Port Sayısı | 8 Port |
| Veri Transferi | 100 Mbps |
| Yönetim | Yok |
| SFP Port | 2 Port |
| PoE Port | 8 Port |
| PoE Değeri (Watt) | 120 Watt |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | TL-SL1311MP |
| Marka | TP-LINK |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
