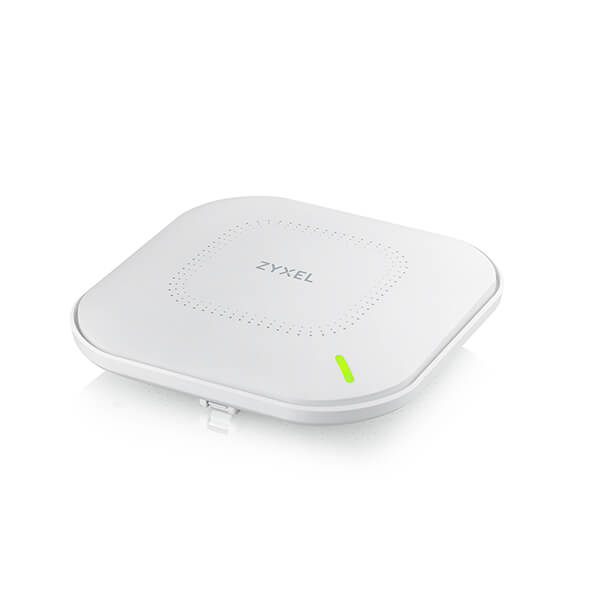

Zyxel NWA210AX EU0102F 2 Port 2.5 Gigabit 2400Mbps Dual Band Wi-Fi 6 PoE Access Point

^{Zyxel NWA210AX EU0102F 2 Port 2.5 Gigabit 2400Mbps Dual Band Wi-Fi 6 PoE Access Point}

Wireless

Standard

IEEE802.11 ax/ac/n/g/b/a

MIMO

MU-MIMO

Wireless speed

2.4 GHz: 575 Mbps

5 GHz: 2400 Mbps

Frequency band

2.4 GHz:

USA (FCC): 2.412 to 2.462 GHz

Europe (ETSI): 2.412 to 2.472 GHz

5 GHz:

USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth

20-, 40- ,80- and 160-MHz

Conducted typical transmit output power^*1

US (2.4 GHz/5 GHz):

23/25 dBm

EU (2.4 GHz/5 GHz):

19/22 dBm

RF Design

Antenna type

4x4 + 2x2 MIMO Embedded Antenna

Antenna gain

2.4 GHz:

Peak Gain 5dBi

5 GHz:

Peak Gain 6dBi

Minimum receive sensitivity

Min. Rx sensitivity up to -101 dBm

WLAN Feature

Band steering

Yes

WDS/Mesh^*2

Yes (V6.10)

Fast roaming

Pre-authentication, PMK caching and 802.11r/k/v

DCS

Yes

Load balancing

Yes

Advanced cellular coexistence

Yes

Security

Encryption

WEP

WPA

WPA2

WPA3

Authentication

IEEE 802.1X

RADIUS authentication

Access management

L2-isolation

MAC filtering

Rogue AP detection

Networking

IPv6

Yes

VLANs

Yes

WMM

Yes

U-APSD

Yes

Management

Operating mode

Cloud managed

Standalone

ZON Utility

Discovery of Zyxel switches, APs and gateways

Centralized and batch configurations:

IP configuration

IP renew

Device reboot

Device locating

Web GUI access

Firmware upgrade

Password configuration

Zyxel Wireless Optimizer

WiFi AP planning

Web UI/CLI

Yes

SNMP

Yes

Physical Specifications

Item

Dimensions (WxDxH)(mm/in.)
180 x 180 x 39/7.09 x 7.09 x 1.54

Weight (g/lb.)
545/1.20

Packing

Dimensions (WxDxH)(mm/in.)
329 x 212 x 64/12.95 x 8.35 x 2.52

Weight (g/lb.)
1065/2.35

Included accessories

Power adapter

Mount plate

Mounting screws

MTBF (hr)

329,004

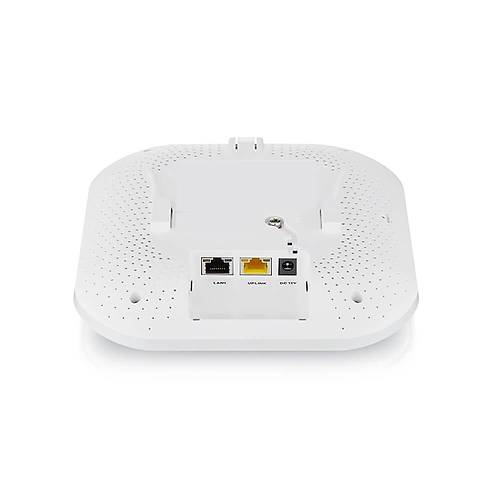

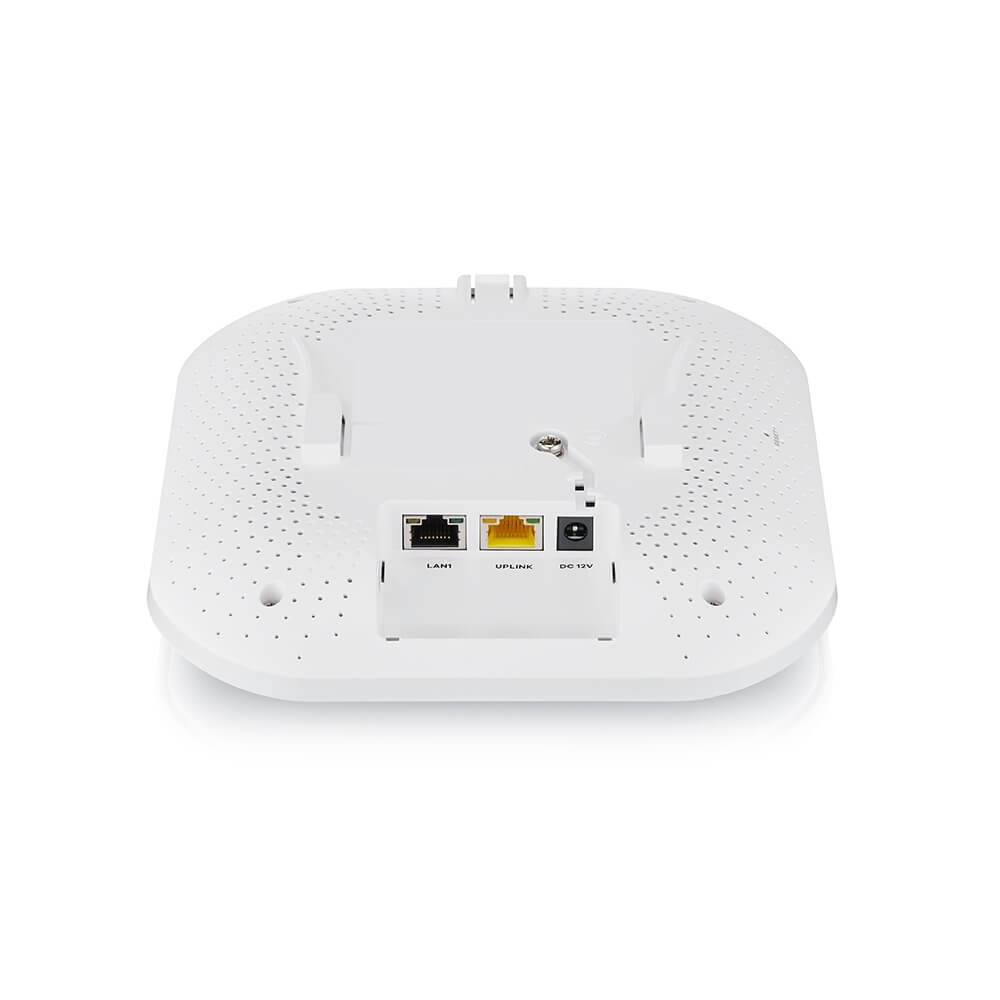

Physical Interfaces

Ethernet port

1 x 1/2.5Gbps LAN

1 x 1Gbps LAN

Power

PoE (802.3)at: power draw 19 W

DC input : 12 VDC 2A

PoE modes

IEEE 802.3af: 2.4GHz 1T2R; 5GHz 2T4R

IEEE 802.3at: Unrestricted

IEEE 802.3bt: Unrestricted

Environmental Specifications

Operating

Temperature
0°C to 50°C/32°F to 122°F

Humidity
10% to 95% (non-condensing)

Storage

Temperature
-40°C to 70°C/-40°F to 158°F

Humidity
10% to 90% (non-condensing)
