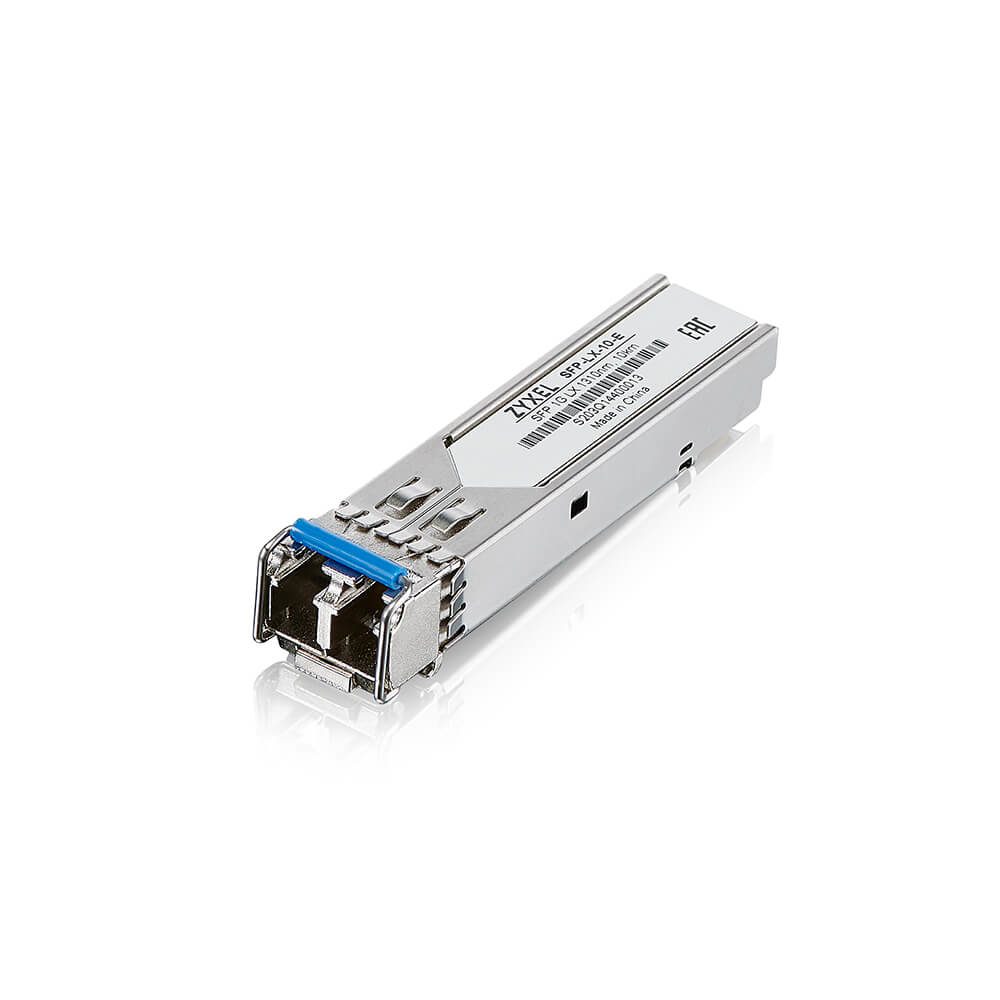

Zyxel SFP-LX-10-E-ZZBD01F 10Km LC Single Mode 1310Nm 10 lu Paket SFP+ Modül

^{Zyxel SFP-LX-10-E-ZZBD01F 10Km LC Single Mode 1310Nm 10 lu Paket SFP+ Modül}

Performans
SFP alıcıverici türü
Fiber optik
Maksimum veri aktarım hızı
The maximum speed with which data can be transmitted from one device to another.
1000 Mbit/s
Arayüz
SFP
Tek modlu fiber (SMF) destekli
Fiber optik bağlantı
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
LC
Maksimum transfer mesafesi
The greatest distance over which the data/signal can be transferred.
20000 m
Dalga boyu
The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
1310 nm
Tx dalga uzunluğu (maks)
1310 nm
Rx dalga uzunluğu (maks)
1310 nm
Tx gücü (minimum)
-3 dBmW
Tx gücü (maksimum)
-9 dBmW
Rx gücü (minimum)
-3 dBmW
Rx gücü (maksimum)
-20 dBmW
Özellikler
Ürün rengi
The colour e.g. red, blue, green, black, white.
çelik
Menşe ülkesi
Country where the device is made. Aka Country of manufacture (COM).
Çin
Uyumlu markalar
What other brands this brand can be used with.
Zyxel
Enerji yönetimi
Girdi voltajı
The voltage (V) which is required to power the product.
3.1-3.5 V
Akım (maks.)
The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge.
0,3 A
Ağırlık & boyutlar
Genişlik
The measurement or extent of something from side to side.
13,4 mm
Derinlik
The distance from the front to the back of something.
56 mm
Yükseklik
The measurement of the product from head to foot or from base to top.
12,4 mm
Ağırlık
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
20 g
